Energy-efficient: compared with conventional lighting, LED consumes up to 85% less energy.
Long life: last to 50,000h rated life or more, 50 times of incandescent bulbs, 8 times of fluorescent lamps.
Wide voltage range: AC220V type can operate within 90-260V range.
Good EMC: excellent electromagnetic compatibility and anti-interference.
SMT technology: surface mounting technology keeps low working temperature of LED chip.
Horizontal tri-chamber structure:independent chambers for light source, driver and wiring ensure LED heat will not affect driver and wiring parts.
Standard material: copper-free Aluminum housing, surface with epoxy powder coating, impact-resistant Polycarbonate lens and stainless steel external hardware.
Improved safety: rabbet screw, sealed bonding surfaces, highly Ex-proof performance.Application:
Explosive gas atmosphere: Zone 2;
Specification:
|
Classification |
Group II Category 3G/2D |
||||
|
Applicable Zone |
Zone 2 (Gas) & Zone 21 - Zone 22 (Dust) |
||||
|
Standards |
IEC60079-0,IEC60079-1, EN60079-0, EN60079-1, IEC60079-31 |
||||
|
Ex-mark |
ExnAII T6 Gc/ExtⅢB T85℃ Db |
||||
|
Rated Voltage |
AC/DC 220V(*1) 50/60Hz |
||||
|
Housing Type |
I |
II |
|||
|
Rated Wattage |
20W |
30W |
40W |
50W |
60W |
|
Luminous Flux |
2000Lm |
3000Lm |
4000Lm |
5000Lm |
6000Lm |
|
Color Temperature |
5000-5500K(3000K optional) |
||||
|
IP Grade |
IP66 |
||||
|
Corrosion-proof Grade |
WF2 |
||||
|
Ambient temperature |
-20°C~ +60°(-40°C optional) |
||||
|
Cable Entry |
G3/4" threads, for cables Φ10mm~Φ14mm（*2） |
||||
|
Terminals |
wires≤2.5mm² |
||||
|
Installation |
Bracket(Wall/Ceiling/Pendant pole/Pedant chain/Bent pole/Fence/Flange) |
||||

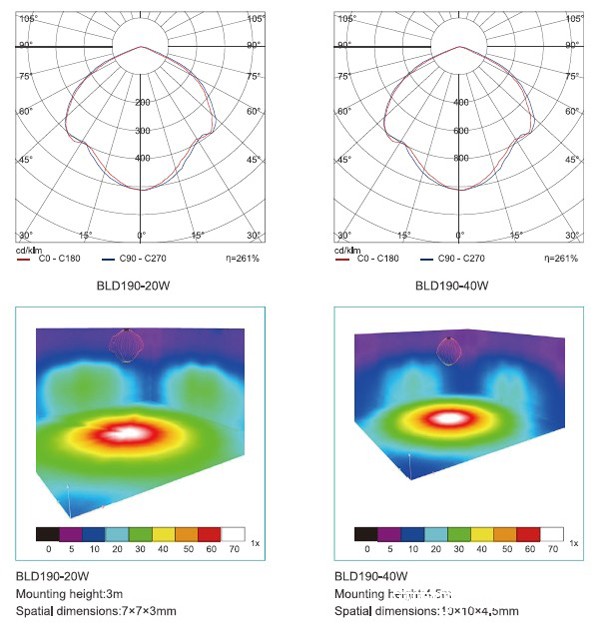

Light Distributor:

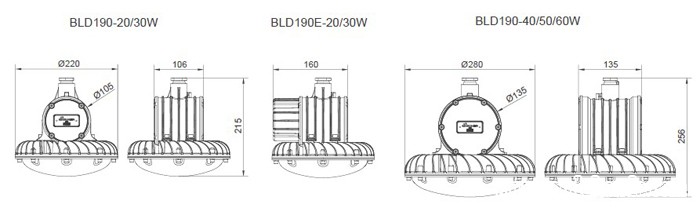

Dimension:
