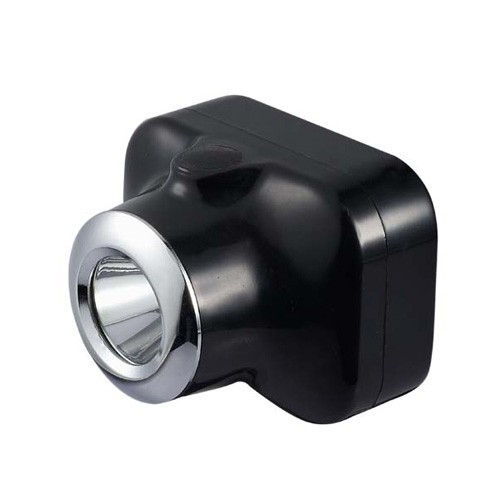

ELM630 LED Explosion-proof Head Lamp
High strength PC housing, high resistance to water, dust and corrosion, IP67.
Made of power LED, high efficacy, long lifespan, maintenance free.
Explosive gas atmosphere: Zone 1 and Zone 2
Explosive gas atmosphere of IIA, IIB, IIC; T1-T6
Features:
1. Made of power LED, lifespan lasts to 100,000hours, maintenance free.
2. The structure is Exib explosion-proof, high safety standard.
3. Battery indicator shows remain power and warning signal when low voltage.
4. High capacity Lithium batteries can support 8hours for strong light and 16 hours for work light.
5. High water and dust proof performance, reached IP67 and anti-corrosion.
6. Three stages Click-type switch: strong light, working light and flash mode.
7. Multi-protection: constant current with short-circuit and overvoltage protection.
8. Can be installed on helmet or belt for carrying on shoulder.
Application:
Explosive gas atmosphere: Zone 1 and Zone 2
Explosive gas atmosphere of IIA, IIB, IIC; T1-T6
Lamp power: main light 1W/ auxiliary light 0.4W
Lamp source: power LED
Widely used in harsh environments and industries of Petroleum Industry, Petrochemical Industry, Shipping Industry, Mining Industry, Military Industry, Metallurgical Industry, Power Generation Industry, Power Transmission Industry, Railway Industry, Public Security and Fire Fighting, etc.
Specification:
|
Ex-mark： |
ExibIICT6 Gb |
||
|
Rated Voltage： |
Led voltage:DC3.7V, charging voltage:AC220V. |
||
|
Rated Wattage： |
Strong light |
1W |
|
|
Work light |
0.4W |
||
|
Degree of protection： |
IP67 |
||
|
Luminous Flux： |
120Lm(strong light)/60Lm(work light) |
||
|
Battery Capacity： |
Lithium battery 4.4Ah |
||
|
Light Source Life： |
≥100,000 hours |
||
|
Battery Life： |
Around 1000 cycles |
||
|
Continuous Discharge Time： |
≥8 hours for strong light/≥16 hours for work light |
||
|
Charge Time： |
6 hours |
||
|
Outline Dimension： |
86x75x57mm |
||
|
Weight： |
180g |
||
