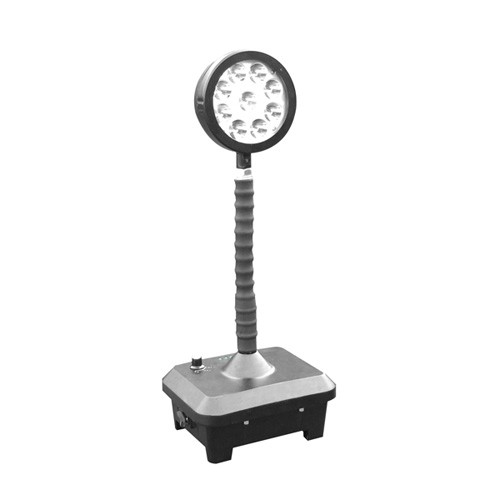

ELM670 LED Explosion-proof Flood Lamp
High strength PC housing, high resistance to water, dust and corrosion, IP65.
Made of power LED source Cree, high efficacy, long lifespan, maintenance free.
Explosive gas atmosphere: Zone 1 and Zone 2
Explosive gas atmosphere of IIA, IIB, IIC; T1-T6
Features:
1. Made of Cree power LED , high efficacy, long life lasts to 60,000hours, maintenance free.
2. Unique structure, free to adjust lighting angle 360°.
3. The battery volume is real time display, easy to know remain power and recharge in time.
4. High capacity Ni-Mh batteries can support 9 hours for strong light and 16 hours for work light.
5. High water and dust proof performance, reached IP65 standard.
6. High-strength aluminum alloy housing and epoxy powder coating are impact resistance and anti-corrosion.
7. Two stages Click-type switch: strong light and working light.
8. Multi-protection: constant current with short-circuit and overvoltage protection.
9. Light weight, easy to operate, can be put on platform, absorbed by magnetic, hanging or carrying by hand.
Application:
Explosive gas atmosphere: Zone 1 and Zone 2
Explosive gas atmosphere of IIA, IIB, IIC; T1-T6
Lamp power: 27W(strong light)/12W(work light);
Lamp source: power LED
Widely used in harsh environments and industries of Petroleum Industry, Petrochemical Industry, Shipping Industry, Mining Industry, Military Industry, Metallurgical Industry, Power Generation Industry, Power Transmission Industry, Railway Industry, Public Security and Fire Fighting, etc.
Specification:
|
Ex-mark： |
ExedIICT6 Gb |
|
Rated Voltage： |
Led voltage:DC12V, charging voltage:AC220V. |
|
Rated Wattage： |
27W(strong light)/12W(work light) |
|
Degree of protection： |
IP65 |
|
Luminous Flux： |
3200Lm(strong light)/1600Lm(work light) |
|
Battery Capacity： |
Ni-Mh battery 9Ah |
|
Light Source Life： |
≥100,000 hours |
|
Battery Life： |
Around 1000 cycles |
|
Continuous Discharge Time： |
≥9hours for strong light, ≥16hours for work light |
|
Charge Time： |
8-10 hours |
|
Outline Dimension： |
254x204x612mm |
|
Weight： |
7Kg |
