Energy-efficient: compared with conventional lighting, LED consumes up to 85% less energy.
Long life: last to 60,000h rated life or more, 50 times of incandescent bulbs, 8 times of fluorescent lamps.
Weather proof: reach IP65 and WF2 standards, which provide maximum performance against rain, moisture, cold, corrosion and dust.
Wide voltage range: AC220V type can operate within 90-260V range.
Good EMC: excellent electromagnetic compatibility and anti-interference.
SMT technology: surface mounting technology keeps low working temperature of LED chip.
Horizontal tri-chamber structure:independent chambers for light source, driver and wiring ensure LED heat will not affect driver and wiring parts.
Standard material: copper-free Aluminum housing, surface with epoxy powder coating, impact-resistant Polycarbonate lens and stainless steel external hardware.
Improved safety: rabbet screw, sealed bonding surfaces, highly Ex-proof performance.Application:
Non-Explosive atmosphere;
Applicable height: GLD210-20W/30W 2.0--4.0m
GLD210-40W/50W/60W 3.0--6.0m
Installation Distance: GLD210-20W/30W 4.0--6.0m
GLD210-40W/60W 5.0--8.0m
Widely used in wet, dusty and corrosive environments, such as industries of Petroleum Industry, Petrochemical Industry, Shipping Industry, Mining Industry, Military Industry, Metallurgical Industry, Power Generation Industry, Power Transmission Industry, Railway Industry, Public Security and Fire Fighting, etc.
Specification:
|
Standards |
IEC60598-1, IEC60598-2-1, IEC61000-3-2, IEC61347-2-3 |
|||||
|
Rated Voltage |
AC/DC 220V(*1) 50/60Hz |
|||||
|
Housing Type |
I |
II |
||||
|
Rated Wattage |
20W（*2） |
30W（*2） |
40W |
50W |
60W |
|
|
Luminous Flux |
2000Lm |
3000Lm |
4000Lm |
5000Lm |
6000Lm |
|
|
Color Temperature |
5000-5500K(3000K optional) |
|||||
|
IP Grade |
IP66 |
|||||
|
Corrosion-proof Grade |
WF2 |
|||||
|
Ambient temperature |
-20°C~ +60°(-40°C optional) |
|||||
|
Cable Entry |
G3/4" threads, for cables Φ10mm~Φ14mm（*3） |
|||||
|
Terminals |
wires≤2.5mm² |
|||||
|
Installation |
Bracket(Wall/Ceiling/Pendant pole/Pedant chain/Bent pole/Fence/Flange) |
|||||

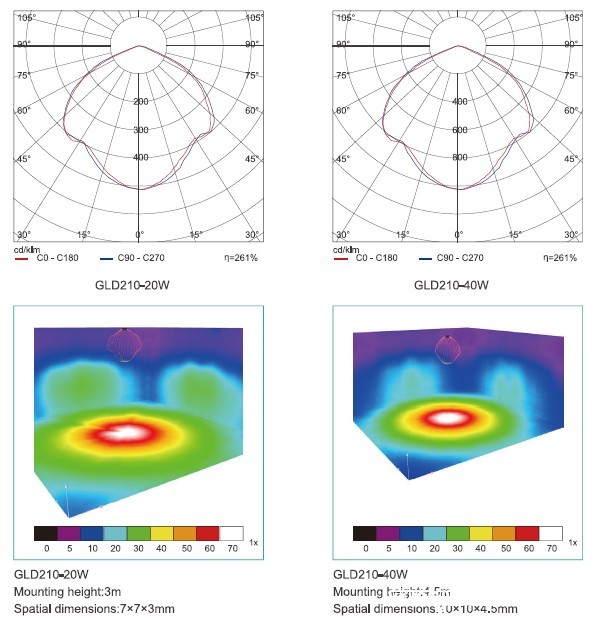

Light Distribution:

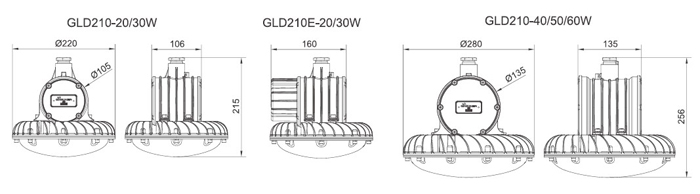

Dimension:
